Axis Discharge 55kw Sand Mill Machine For Alumina Electrode Material

  • 1
  • 2
  • 3

Brand Name : Allwin

Model Number : HZPLUS100

Certification : ISO9001

Place of Origin : Chongqing,China

MOQ : 1 unit

Price : USD38000-115000Per Unit

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 30 Units per Month

Delivery Time : 90-120 Working Days

Packaging Details : Wooden Boxes

Inner Chamber Matrial : SIC Ceramic

Outter Chamber Material : SUS 304 Stainless Steel

Effective Volume : 100Liter

Motor Energy : 55kw 75kW

Ex-proof Performance : Explosion-proof or Non EX-proof

Feed pump : 1.5"ARO Pump

Discharging manner : Dynamic Axis Discharge

APplicaiton : battery Alumina

Contact Now

Axis Discharge HZPLUS 100 55kW Sand mill Machine For Alumina Electrode Material



     100  liter large flow axis discharge bead mills are usually used in LFP cathode material and  Silicon Carbon negative material , Seperator of Aluminia of battery industry.  Our machines can help users save enegry  over 15-30%,  and also reduce the labor cost.



1. Technical data of large flow horizontal bead mill

No Main Parameters HZPlUS100 bead  mill Notes
1 Motor power
(kW)		 55KW  Ex-proof/non ex-proof available
2

Effective volume of

grinding chamber (L)

 100L  volume can be suggested according to different grinding materials and usages
3 Water pressure
(MPa)		 0.3
4 Cooling water consumption (L/min) 2.5-3.0m3/h Advision: Users offer the Cooling water less 10°C
5 Dimensions:L*W*H
(mm)		 2140x1250x2150
6 Weight
(kg)		  About 2000

2. Configuration Instructions
No

Main parts



                                 HZPLUS100 Notes
1 Material of outter chamber SUS 304 stainless steel
  Material of inner chamber SIC Ceramic  different mateials for choice
3 Material of Dispersing shaft 40Cr with hard chromium plating
4

Material of dispersing system

 steel coated with PU, Zirconia ceramics Choose what you need
5 Feeding and discharging end covers on the cylinder SUS 304 stainless steel coated with PU,or zirconia ceramics
6 Discharge screen ring Dynamic discharge with screen ring SUS304.Gaps: 0.5/0.3mm.
7 Mechanical seal Double end mechanical seal
8 Feeding pump 1.5" ARO diaphragm pump IngersoII Rand


The working principle:

The working principle is to use the material pump to feed the solid-liquid mixture material that has been pre-dispersed and wetted by the mixer into the chamber, and the material and the grinding medium in the chamber are stirred by the high-speed rotating disperser, so that the solid particles in the material and the grinding media produce stronger collision, friction, and shearing effects with each other to achieve the purpose of accelerating the grinding of fine particles and dispersing .After grinding and dispersing, the material passes through a dynamic separator to separate the grinding medium and flows out of the discharge pipe.



3.The main processing equipment:

Axis Discharge 55kw Sand Mill Machine For Alumina Electrode Material

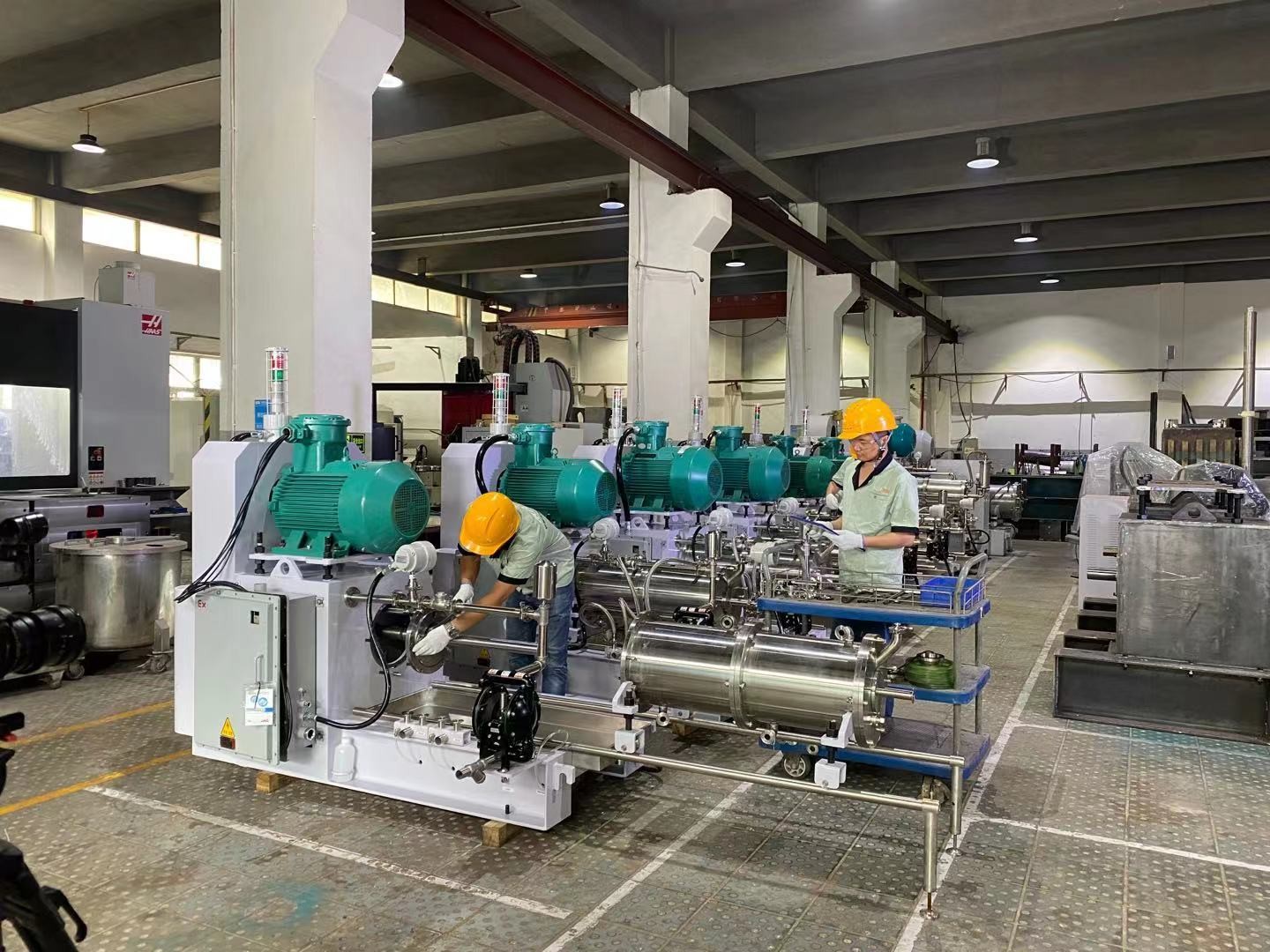

4. Assembly line in work plant

Axis Discharge 55kw Sand Mill Machine For Alumina Electrode Material



5.The After sales service:

*** Video instructions for installation and commissioning, if need, we will arrange engineer to your factory.

***12-24H feedback any customers questions, firstly offer the video help you solving, if need, arrange maintenance engineer for you.



6.The package and shipping: Be covered with anti-abrasion film and then packed in wooden boxes, then seashipping by FCLor LCL.

7. Free testment for recommendation with customer supplied particles ,solvent or dispersant agent.





If any detailed information and price ,pls contact me, also warmly welcom to visit us.
