20L Food Grade Steel Grinding Sand Mill Machine For Tasty Nut Paste/ Marmalade/Jam
To produce tasty nut paste , marmalade or jam, our customers always adopte horizontal bead mills to grind the nuts,flesh of fruit, to spread out the delicious taste and rich smelling. After grinding the jam is more delicate and silky, final customers is more enjoyable when eating to ensuring better sales.
Main Technical Parameter of 20L Sand Mill Machine
| NO. | Main parameter | SP20 | Note |
| 1 | Main motor power(kW) | 18.5 | 3phase,230V 50Hz |
| 2 | Effective Volume(L) | 20 | |
| 3 | Water presure Mpa | 0.3 | |
| 4 | Cooling water consumption (L/min) | 2.5 -3m3/h | The lower limit can be selected for the water consumption, in case that the cooling water temperature is lower than 10℃. |
| 5 | Overall dimension (mm) | 1740*820*1600 | |
| 6 | Weight (kg) | 1200 | |
Configuration Instructions
| No | Main parts | SP20 | Notes |
| 1 | Material of External vessel | SUS 304 stainless steel | |
| 2 | Material of Inner grinding vessel | SUS 304 stainless steel, 316L food grade stainless steel | different mateials for choice |
| 3 | Material of Dispersing shaft | 40Cr with hard chromium plating | |
| 4 | Material of dispersing system | 304 stainless steel, 316L food grade stainless steel | Choose what you need |
| 5 | Feeding and discharging end covers on the cylinder | SUS 304 stainless steel | |
| 6 | Static discharge screen ring | Wire Wound screen ring with 304 | |
| 7 | Mechanical seal | Double end mechanical seal,assemblied | |
| 8 | Feeding pump | 1" ARO diaphragm pump | IngersoII Rand |
The photoes of processing
main meters
main meters are purchased from qualified suppliers to ensure the presecion and accuracy, at least one year warranty.
key parts of grinding machines
factory assembly lines
The package and shipping: Be covered with anti-abrasion film and then packed in wooden boxes, then seashipping by FCLor LCL.
Related products: Dispersing machine & the Zirconical beads, This 2 products are much important for the Bead mills, this materials is pre-dispersing well, It's better for grinding with bead mill after pre-dispesing well. Also the zirconia beads (grinding beads with different size for meeting different finally fineness.

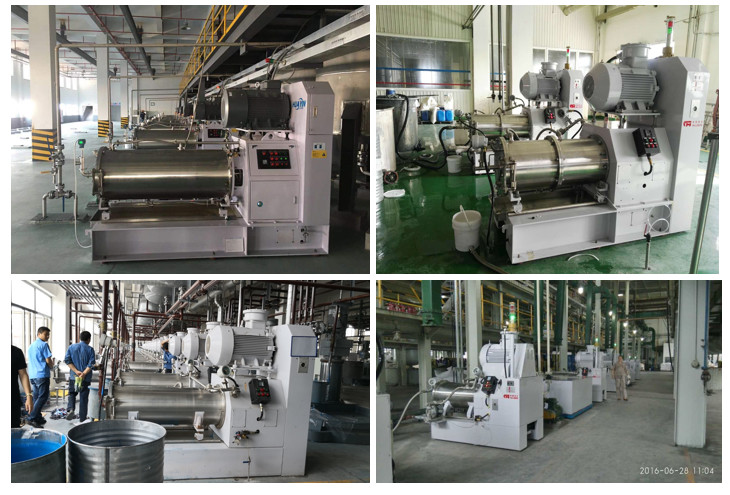

display of bead mills in custmers place
Company introduction
ALLWIN is founded in 1996 in chongqing China, the first batch of bead mill factories in china, almost have 30 years bead mills producing experience, made and sell over 10000 mills all over the world, and the company developed bigger and bigger, and upgraded producing machinines, parts designations, softwares of management, etc. we aim to become the first class bead mill producer and service supplier in the world. We also positively particaipate in different industries meetings and exhibitions to show our allwin company to customers, to learn more information to make progress, to help more customers solve their problems they have met or they will meet in the future.
Note:
1.We will recommend the suitable bead mills according to your information and demand, such as industry, fineness, temperature, viscosity,production capacity etcs.
2.The Materials of inner chamber and Dispersing disks can be chosed according to your different grinding materials and industries.
3.The control system will matching of different demand, such as PLC or traditional Button type.
If need more detailed information, please don't hesitate contact us, Also Warmly welcome to visit us.
