High 10-30% Efficiency Energy Saving Silicon Carbide Ceramics 30L 50L 100 L Wet Grinding Bead Mill Machine
The main feactures:
1. Different materials for meeting dirffent needs :
Adopted high abrasive-resisting materials:silicon carbide ceramics,like hard alloy, 9Cr18Mo alloy steel, SUS 304 stainless steel, to guarantee strengthen working life of bead mill machine. Meanwhile we suggest the suitable grinding beads to match with the inner chamber materials.
2. Decrease the temperature:
Applied self-owned double spiral cooling technology to enhance the space of heat rejection, with superior material with good thermal conductivity and lower the temperature before coollant come in pipe. also temperature is lower if choose the inner chamber of Silicon carbide ceramics.
3. Strenghten the fineness:
The different fineness after grindinig can be reached for your different demands, the smallest grinding media of 0.1mm with 200-300nm.
4. High efficiency low energy:
High efficiency with enegry saving, have indepently grinding and dispersing technology, nomarlly the efficiency is higher 10-30% than traditional machines. also it's more better if choose the temperature is better.
5. Reduce the workforce with indicator light
One worker could easily operate and manage 5-10 sets mill machines if mills add the indicator light, decrease the cost of humen. the mill machines will add more if need central control system. It's will be automation and intelligence and saving more labor cost.

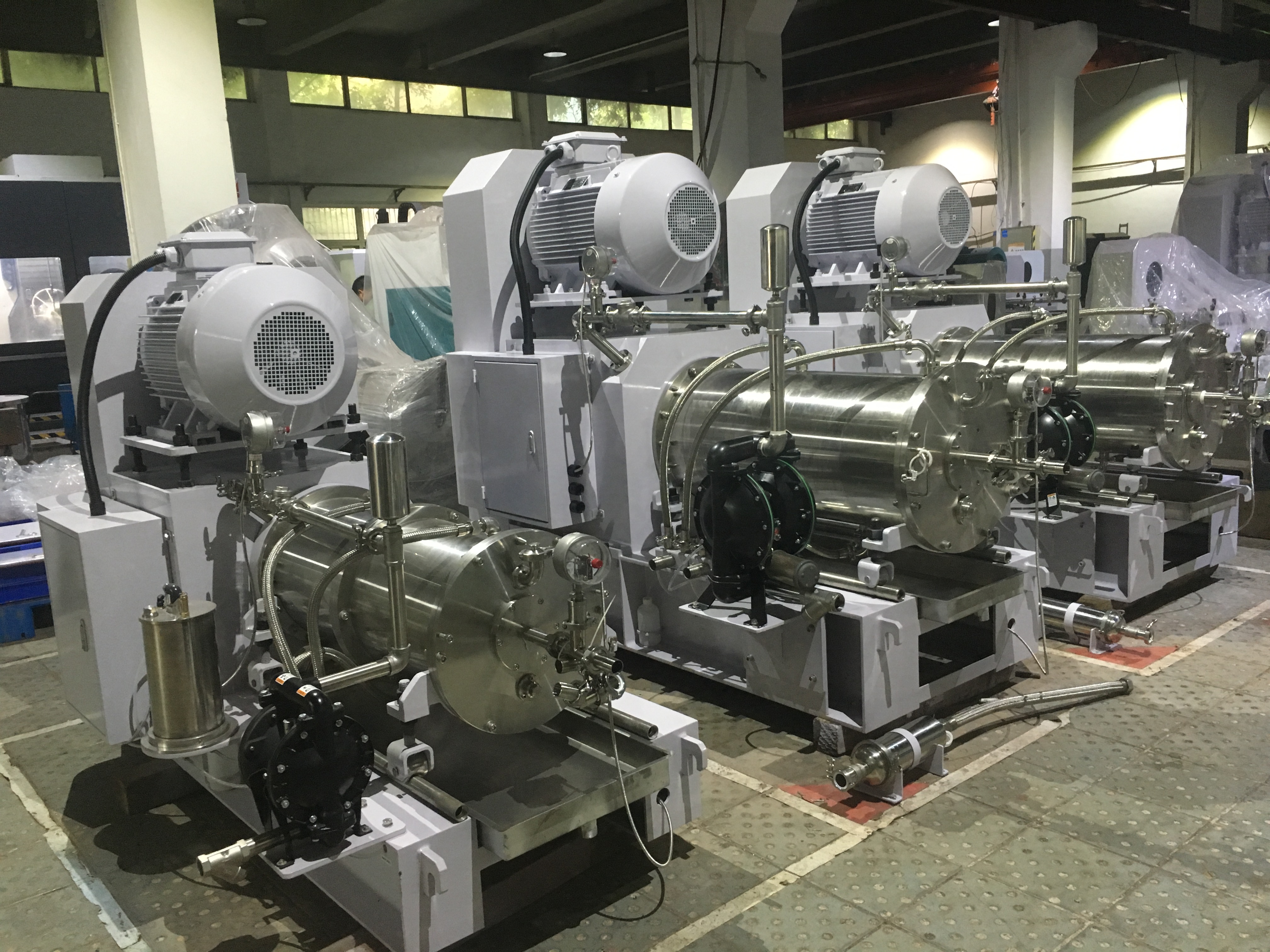

The production show:
The main parameters:
| NO. | Main parameter | SP50 | Note |
| 1 | Main motor power(kW) | 37 | 3phase,380V 50Hz |
| 2 | Effective Volume(L) | 50 | |
| 3 | Water presure Mpa | 0.3 | |
| 4 | Cooling water consumption (L/min) | 2.5 -3m3/h | The lower limit can be selected for the water consumption, in case that the cooling water temperature is lower than 10℃. |
| 5 | Overall dimension (mm) | 2000*980*1900 | |
| 6 | Weight (kg) | 1500 | |
The main instructions:
| No | Main parts | SP50 Sand Mill Machine | Notes |
| 1 | Outer chamber | 304 stainless steel | |
| 2 | Internal chamber | | |
| 3 | Dispersing shaft | 40Cr with hard chromium plating | Brand: NSK |
| 4 | Dispersing disk | 304 Stainless steel | |
| 5 | Mechanical seal | Double Mechanical seal with Pressure of 0.45 Mpa | |
| 5 | Feeding and discharging end covers on the cylinder | 304 stainless steel | |
| 6 | Turbine centrifugal separator and pegs | 304 stainless steel and YG6 pines | |
| 7 | Static discharge screen ring | 304 stainless steel screen ring with 304.Gaps: 0.5mm. | |
| 8 | Mechanical seal | Intelligent double mechanical seal with mandatory lubricating-cooling system | |
| 9 | Feeding pump | 1" aro diaphram pump | Brand: Ingersoll Rand |
| 10 | Operating control | button type or PLC (optional) | |
| 11 | Electric configuration | Explosion-proof motor(suitable for oil based materials). ex-proof parts: operation column,electrical appliance boxes;electric contact pressure gauge, temperature,solenoid valves with EX-proof electrical contacts. | non explosion-proof optional (suitable for water based materials) |
| 12 | Fasteners and connecting parts | Stainless steel clamp-type connecting parts | Quick and convenient |
The Application:
Sand Mill Machine ( bead mill/ grinding mill/ sand mill) are widely applicated in following industries:
Painting, coating , dye, pigment, ink, pesticide SC,cosmetics, medicines, food addictive,,mineral, and other liquid materials, paper making etcs.
The Main processing equipment:
Welding the chamber by weld robot.
The 11 patents of Bead mill machine
FAQ
Q1: Are you a trading company or manufacturer?
A1: We are the manufacturer.
Q2: Where is your company and factory located? How can I visit you?
A2: Our company is located in Tongxing industrial zone in Caijia Town, Beibei, Chognqing, China. Post code: 400709. It takes about 0.5 hours from Airport to our coampny by car. All our clients, from home or abroad, are warmly welcome to visit us!
Q3: Do you have own R&D team?
A3: Yes, we have 12 engineers, and our products could be customized for your requirements.
Q4: How about the quality?
A4: We have professional engineers and a strict QA& QC system, Our factory comply with the IS09001 standard strictly.
Q5: What is your after-sale service?
A5: we offer 100% guarantee on our product and agree 1:1 replace defective products. Firstly we offer the video instruction for maintenance for you ,if need ,we will arrange engineer for you.
Q6: How is the payment?
A6: Firstly paid the deposit, then paid the balanced before shipping.
Q7: How is the package and delivery?
A7: Normally are the wooden boxes, and FCL or LCL container for sea shipping.
