This bead mills are main consists of chamber and disc dispersing system. The double end mechanical sealing with indepent technology could resistant to more than 1600 kinds of solvents. The series have great flow rate and super fine discharging, the finally fineness can be reach 1um for D90 .The cooling efficiency is better than normal mills because the sectional double spiral water course is more beneficial to heat exchange. The grinding efficiency is higher 15-30% than traditional mill machines; the combined disperser can rapidly increase dispersing efficiency.
This Super series are widely used in coating and paint, pigment, pesticide and agro-chemical industry, Pigment and dyestuffs, Printing inks, Gravure inks, food and food processing,non-metallic minerals.
The Configuration instructions:
1. Outer chamber materials: 304 stainless steel
2. Inner Chamber materials: 304 stainless steel or you need
3 .Dispersing shaft: 40Cr with hard chromium plating
4. Dispersing disk: PU coated 304 stainless steel
5. Feeding and discharging end covers on the cylinder: 304 stainless steel
6. Turbine centrifugal separator and pins: 304 stainless steel and YG6 pins
7. Static discharge screen ring: Wire Wound screen ring with 304.Gaps: 0.5mm.
8. Mechanical seal: Intelligent double mechanical seal with indepent technology
9. Feeding pump: 1.5” ARO diaphragm pump;
10. Appliance configuration: Non Explosion-proof machine, suitable for water base materials, motor 55kW. Non Explosion-proof parts: operation column,electrical appliance boxes;electric contact pressure gauge, temperature,solenoid valves with NO ex electrical contacts., Control system (button type).
11. Fasteners and connecting parts: Stainless steel clamp-type connecting parts.
The Production show :
The main processing equipment:
The United States imported four axis Haas machining center
3 Axis machining center
The processing
The packing and delivery (firstly anti-abrasion film and packed in wooden boxes)
The related products:
The dispersing machine

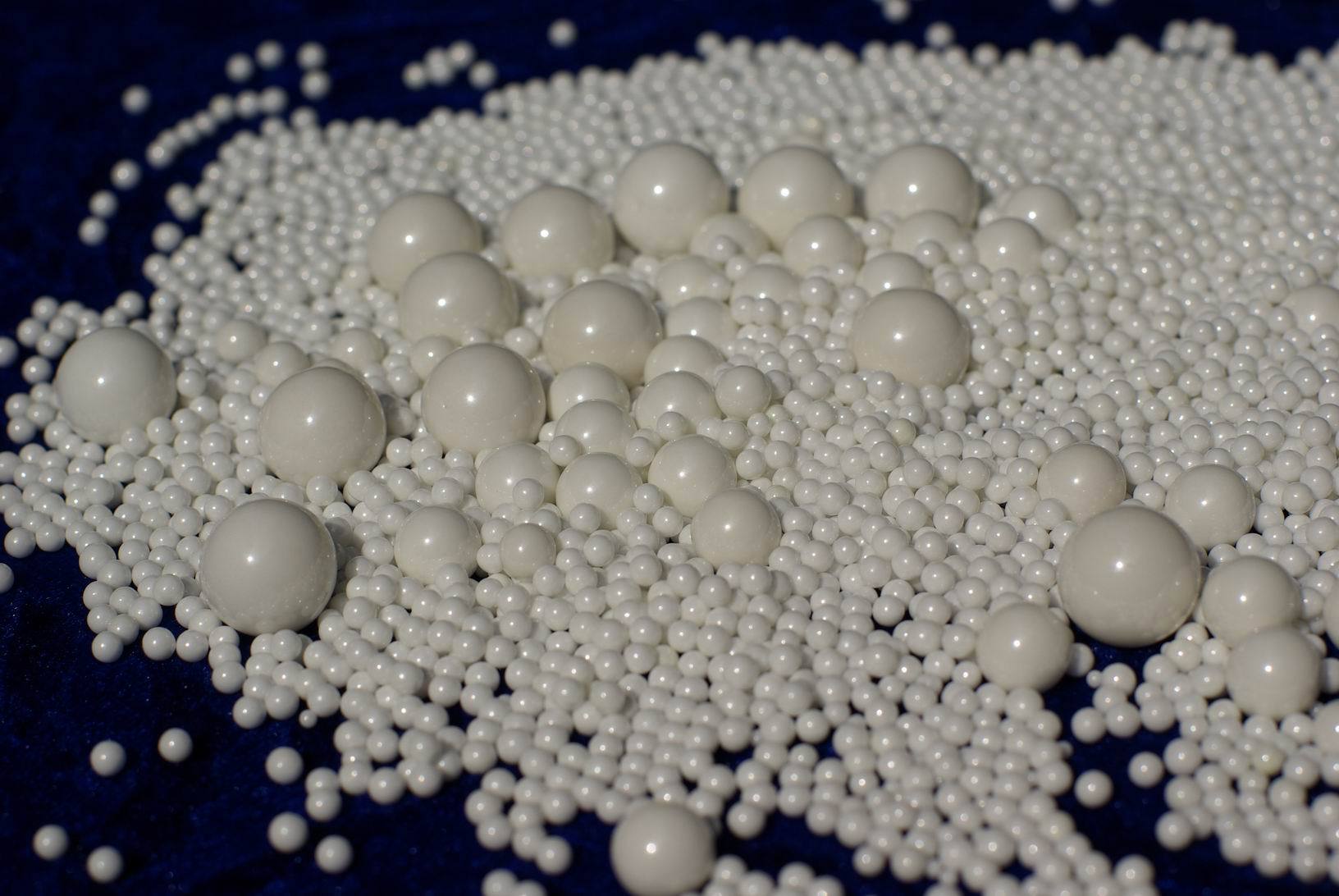

The zirconia bead from 0.3-3.0mm
FAQ:
Q1: Are you a trading company or manufacturer?
A1: We are the manufacturer.
Q2: Where is your company and factory located? How can I visit you?
A2: Our company is located in Tongxing industrial zone in Caijia Town, Beibei, Chognqing, China. Post code: 400709. It takes about 0.5 hours from Airport to our coampny by car. All our clients, from home or abroad, are warmly welcome to visit us!
Q3: Do you have own R&D team?
A3: Yes, we have 12 engineers, and our products could be customized for your requirements.
Q4: How about the quality?
A4: We have professional engineers and a strict QA& QC system, Our factory comply with the IS09001 standard strictly.
Q5: What is your after-sale service?
A5: we offer 100% guarantee on our product and agree 1:1 replace defective products. Firstly we offer the video instruction for maintenance for you ,if need ,we will arrange engineer for you.
Q6: How is the payment?
A6: Firstly paid the deposit, then paid the balanced before shipping.
Q7: How is the package and delivery?
A7: Normally are the wooden boxes, and FCL or LCL container for sea shipping.
The 11 patents certification:
For the materials of inner chamber, dispersing disks are widely chosed according to your detailed requiriments. such as SUS304 stainless steel, Wearable steel, PU coated the 304 stainless steel, wearable alloy steel and ceramics.
If any need please don't hesitate to contact us, we will recommand the suitable machines for you after communicating and know your detailed needs.
